Name: KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: ККС-БГ-М
Price: 5,000.00 USD
Availability: InStock

Домой > продукты > Environmental Monitoring >

KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication

Место происхождения:

Китай

Фирменное наименование:

KACISE

Сертификация:

Номер модели:

ККС-БГ-М

Свяжитесь с нами

Запросите цитату

KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication

Подробная информация о продукции

Измеренные параметры:

Освещенность, температура, влажность, концентрация CO2

Температурный диапазон:

от -20 до 50°C (аналоговый) / от -40 до 100°C (цифровой)

Диапазон влажности:

0-100% RH

Диапазон CO2:

0-5000 ppm

Рейтинг защиты:

IP65

Точность:

Температура: ±0,3°С; Влажность: ±5% относительной влажности; CO2: ±(50 ppm+5%); Свет: ±4%

Условия оплаты и доставки

Количество мин заказа

1 шт.

Упаковывая детали

Каждая единица имеет индивидуальную коробку, все коробки упакованы в стандартные упаковки или по жел

Время доставки

5-8 рабочих дней

Условия оплаты

LC,D/A,D/P,T/T,Western Union,MoneyGram

Поставка способности

1000 шт/штук в неделю по договоренности

СОБЩЕННЫЕ ПРОДУКТЫ

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Лучшая цена

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Лучшая цена

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Лучшая цена

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Лучшая цена

Свяжитесь с нами

Свяжитесь сейчас

Описание продукта

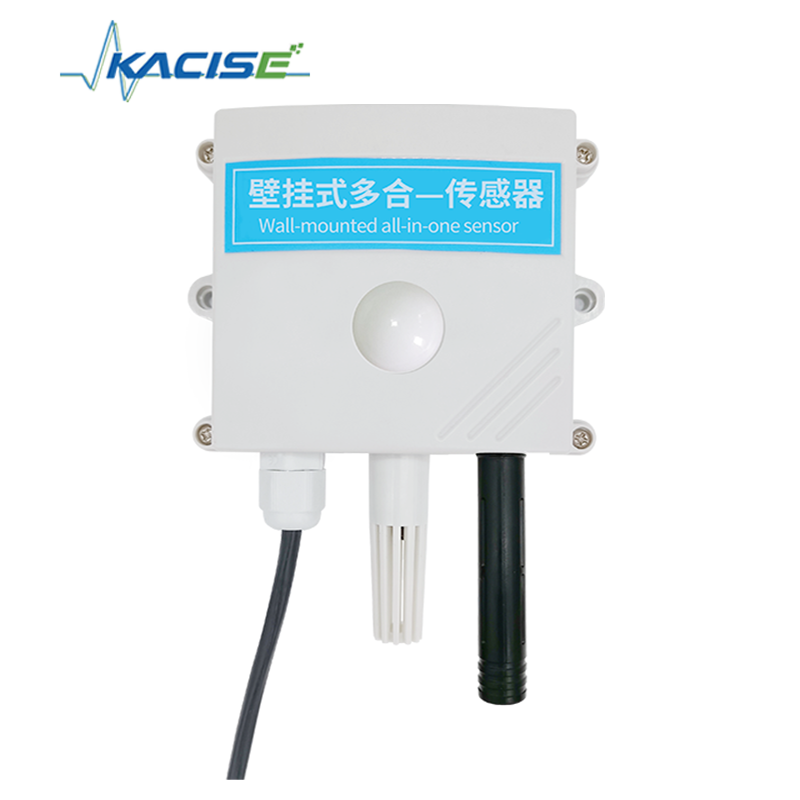

KQS-BG-M Wall-Mounted Multi-Parameter Sensor

The KQS-BG-M wall-mounted multi-parameter sensor is an integrated device designed for measuring environmental parameters such as illuminance, temperature, humidity, and CO2 concentration. It features a high-protection housing with an IP65 rating, offering resistance to rain and snow while maintaining good breathability.

The product adopts an industrial-grade microprocessor chip imported from the United States and a high-precision temperature and humidity sensing chip imported from Switzerland, ensuring excellent reliability, high accuracy, and strong interchangeability. The sensor supports RS485/RS232 communication interfaces and standard Modbus protocol, making it easy to connect with other data acquisition systems. It can also output up to 4 channels of analog signals (current and voltage outputs). Digital outputs support Modbus or ASCII protocols, enabling secondary development with stable performance and easy installation.

Product Features

Factory dual calibration ensures high measurement accuracy
Secondary linear calibration provides stable and reliable data output

Technical Parameters

Item	Specification
Range	Temperature: -20-50°C (analog output) -40-100°C (digital output) Humidity: 0-100% RH CO₂: 0-5000 ppm Light: 0-200,000 Lux (indoor) 0-65,535 Lux (outdoor)
Accuracy	Temperature: ±0.3°C Humidity: ±5% RH CO₂: ±(50 ppm + 5%) Light: ±4%
Resolution	Temperature: 0.1°C Humidity: 0.1% RH CO₂: 1 ppm Light: 1 Lux
Power supply	5 V or 9-30 V wide-voltage optional
Signal output	Current: □ 4-20 mA □ 0-20 mA Voltage: □ 0-2.5 V □ 0-5 V □ 1-5 V Serial: □ RS485 / RS232 optional

Dimensions
