Name: KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQZ-GF
Price: 5,000.00 USD
Availability: InStock

Домой > продукты > Environmental Monitoring >

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Место происхождения:

Китай

Фирменное наименование:

KunQuan

Сертификация:

Номер модели:

KQZ-GF

Свяжитесь с нами

Запросите цитату

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Подробная информация о продукции

Датчик класса:

Датчики метеорологического класса

Монтажный столб:

От 0,5 м до 3,5 м (настраиваемый)

Защита:

полностью водонепроницаемый

Хранение данных:

Автономное хранилище, настраиваемый интервал

Параметры отслеживаются:

Ветер, температура, влажность, давление, солнечное излучение

Режим работы:

Автоматический/автономный/сетевой

Условия оплаты и доставки

Количество мин заказа

1 шт.

Упаковывая детали

Каждый блок имеет отдельную коробку, и все коробки упакованы в стандартные пакеты или доступны клиен

Время доставки

5-8 рабочих дней

Условия оплаты

LC,D/A,D/P,T/T,Western Union,MoneyGram

Поставка способности

1000 шт/штук в неделю по договоренности

СОБЩЕННЫЕ ПРОДУКТЫ

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Лучшая цена

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Лучшая цена

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Лучшая цена

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Лучшая цена

Свяжитесь с нами

Свяжитесь сейчас

Описание продукта

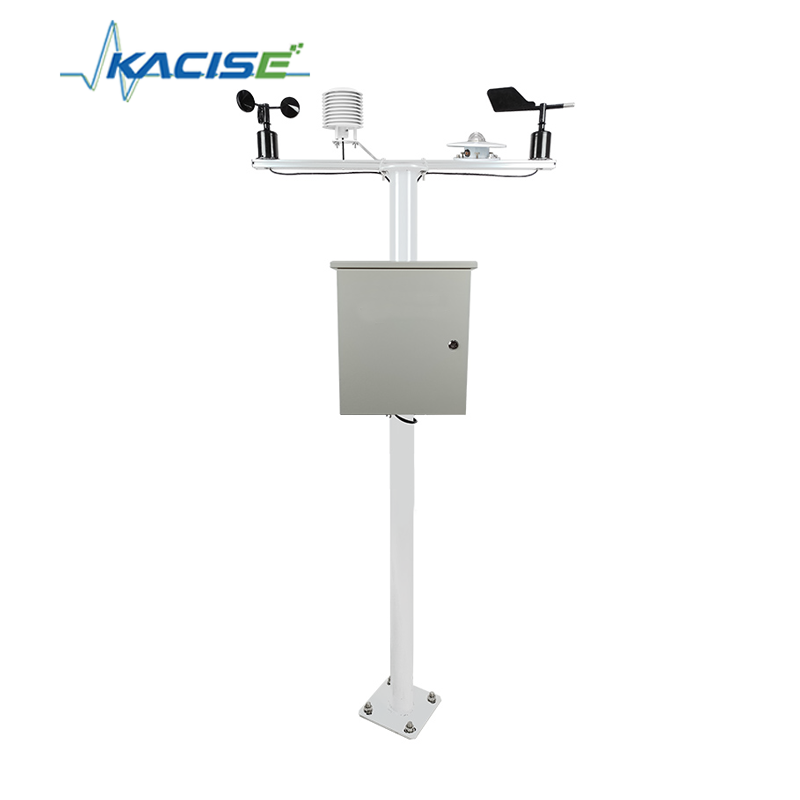

KQZ-GF Photovoltaic Weather Station

Product Overview

The KQZ-GF photovoltaic weather station is an unattended environmental monitoring system that integrates meteorological data acquisition, storage, transmission, and statistical analysis.

The automatic weather station system consists of three main components: meteorological sensors, a data acquisition unit, and computer-based meteorological software. It can simultaneously monitor multiple atmospheric parameters including air temperature, air humidity, wind speed, wind direction, and solar total radiation.

The wind speed and wind direction sensors are dedicated meteorological-grade sensors, offering high precision and high reliability. The data acquisition unit supports meteorological data collection, real-time clock functionality, timed data storage, parameter configuration, user-friendly interface, and standard communication functions.

Technical Specifications

Parameter	Measurement Range	Resolution	Accuracy
Wind speed	0-70 m/s	0.1 m/s	±(0.3 + 0.03V) m/s Starting wind speed ≤ 0.5 m/s
Wind direction	0-360°	1°	±3° Starting wind speed ≤ 0.5 m/s
Air temperature	-40 to +100°C	0.1°C	±0.3°C
Air humidity	0-100% RH	0.1% RH	±5% RH
Atmospheric pressure	300-1100 hPa	0.1 hPa	±1 hPa
Surface-mounted temperature	-50 to 100°C	0.1°C	±0.5°C
Solar total radiation	0-2000 W/m²	1 W/m²	±3%

Key Features

Low-power processor integrating data acquisition, storage, and communication for high system integration
Fully waterproof design suitable for harsh environments; supports standalone use or rapid deployment of localized observation networks
Offline data storage with configurable sampling intervals based on observation needs
Supports mounting pole heights from 0.5 m to 3.5 m, with customizable installation accessories
High precision and high reliability for long-term environmental monitoring applications
