Name: KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-FX1
Price: 5,000.00 USD
Availability: InStock

Домой > продукты > Environmental Monitoring >

KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC

Место происхождения:

Китай

Фирменное наименование:

KACISE

Сертификация:

Номер модели:

KQS-FX1

Свяжитесь с нами

Запросите цитату

KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC

Подробная информация о продукции

Диапазон измерения:

0–359° в полном направлении

Начальная скорость ветра:

≤ 0,8 м/с

Точность:

± 3 °

Разрешение:

1 °

Источник питания:

Опционально широкий диапазон напряжения 5 В или 9–30 В постоянного тока

Выходной сигнал:

4–20 мА/0–20 мА, 0–2,5 В/0–5 В/1–5 В, RS485/RS232 опционально

Условия оплаты и доставки

Количество мин заказа

1 шт.

Упаковывая детали

Каждая единица имеет индивидуальную коробку, все коробки упакованы в стандартные упаковки или по жел

Время доставки

5-8 рабочих дней

Условия оплаты

LC,D/A,D/P,T/T,Western Union,MoneyGram

Поставка способности

1000 шт/штук в неделю по договоренности

СОБЩЕННЫЕ ПРОДУКТЫ

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Лучшая цена

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Лучшая цена

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Лучшая цена

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Лучшая цена

Свяжитесь с нами

Свяжитесь сейчас

Описание продукта

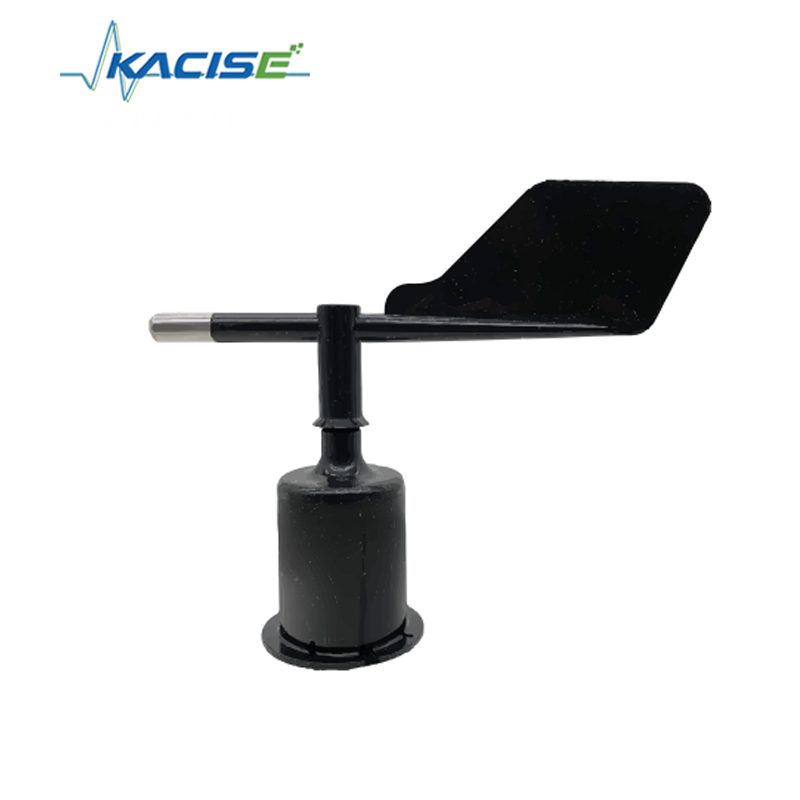

KQS-FX1 Wind Direction Sensor

Wind Direction Sensor KQS-FX1

Product Introduction

The KQS-FX1 is a full 360° wind direction sensor that uses a precision angle sensing element internally. The KQS-FX1-8 eight-direction wind sensor adopts a 4-optocoupler system to determine wind direction. It uses a low-inertia ABS wind vane to ensure quick response to wind direction changes and good dynamic performance. This product features excellent linearity, high accuracy, no dead zone, strong lightning resistance, easy observation, and stable and reliable operation. It is widely used in meteorology, oceanography, environmental monitoring, airports, ports, laboratories, agriculture and industry, transportation, and other fields.

Product Features

Independently patented design; each sensor is wind-tunnel calibrated
Uses high-quality bearings, low starting wind speed, and stable performance
Easy installation; supports both bottom and side cable outlet configurations

Technical Parameters

Item	Specification
Range	0-45 m/s (current/voltage output) 0-70 m/s (pulse, RS485, RS232 output)
Starting wind speed	≤ 0.8 m/s
Accuracy	±(0.5 + 0.02V) m/s (V = real-time wind speed value)
Resolution	0.1 m/s
Power consumption	0.48 W
Power supply	5 V or 9-30 V wide-voltage optional
Net weight	125 g
Signal output	Current: 4-20 mA/0-20 mA Voltage: 0-2.5 V / 0-5 V /1-5 V Serial port: RS485 / RS232 optional
Cable length	Standard: 0.8 m Others:
