Name: Proline Promag H 100 electromagnetic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Пролин Промаг H 100
Price: 2,540.00 USD
Availability: InStock

Домой > продукты > Электромагнитный измеритель прокачки >

Proline Promag H 100 electromagnetic flowmeter

Proline Promag H 100 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Место происхождения:

Швейцария

Фирменное наименование:

Endress+Hauser

Сертификация:

Номер модели:

Пролин Промаг H 100

Свяжитесь с нами

Запросите цитату

Proline Promag H 100 electromagnetic flowmeter

Подробная информация о продукции

Диапазон измерения:

00,06 dm3/min до 600 m3/h (0,015 до 2650 гал/мин)

00,06 dm3/min до 600 m3/h (0,015 до 2650 гал/мин):

PN 40, класс 150, 20K

Диапазон температуры окружающей среды:

от –40 до +60 °C (от –40 до +140 °F)

Датчик расквартировывая материал:

1.4301 (304), устойчивый к коррозии

Передатчик расквартировывая материал:

Компактный: AlSi10Mg, с покрытиемКомпактный/сверхкомпактный: 1,4301 (304)

Выделить:

Proline Promag H 100 flowmeter

electromagnetic flow meter with warranty

industrial electromagnetic flow meter

Условия оплаты и доставки

Количество мин заказа

1 шт.

Упаковывая детали

Каждый блок имеет отдельную коробку, и все коробки упакованы в стандартные пакеты или доступны клиен

Время доставки

5-8 РАБОЧИХ ДНЕЙ

Условия оплаты

LC,D/A,D/P,T/T,Western Union,MoneyGram

Поставка способности

1000 штук/штуки в неделю

СОБЩЕННЫЕ ПРОДУКТЫ

Proline Promass S 300 Coriolis flowmeter

Лучшая цена

Proline Promass P 500 Coriolis flowmeter

Лучшая цена

Proline Promass Q 300 Coriolis flowmeter

Лучшая цена

Proline t-mass F 500 thermal mass flowmeter

Лучшая цена

Свяжитесь с нами

Свяжитесь сейчас

Описание продукта

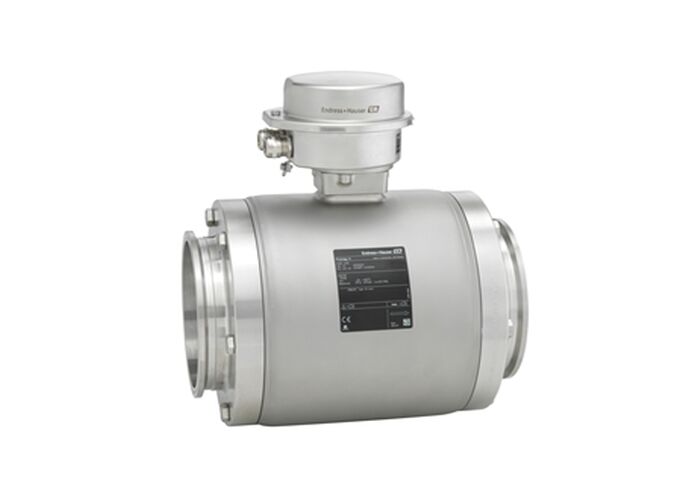

Proline Promag H 100 Electromagnetic Flowmeter

Specialist for hygienic applications with an ultra-compact transmitter. Multivariable measurement of flow, temperature and conductivity. Dedicated to demanding applications in the food and beverage as well as life sciences industries.

Field of Application

Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. The ultra-compact transmitter provides full performance on the smallest footprint and enables seamless system integration, making Promag H 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology enables compliance and process safety at all times.

Key Benefits

Multivariable measurement for flow, temperature and conductivity
Flexible installation concept - numerous hygienic process connections
Energy-saving flow measurement - no pressure loss due to cross-section constriction
Space-saving transmitter - full functionality on the smallest footprint
Time-saving local operation without additional software and hardware - integrated web server
Integrated verification - Heartbeat Technology
Maintenance-free - no moving parts

Technical Specifications

Measuring Principle	Electromagnetic
Nominal Diameter Range	DN 2 to 150 (¹⁄₁₂ to 6)
Measuring Range	0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)
Max. Measurement Error	Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)
Medium Temperature Range	-20 to +150 °C (-4 to +302 °F)
Ambient Temperature Range	-40 to +60 °C (-40 to +140 °F)
Max. Process Pressure	PN 40, Class 150, 20K
Degree of Protection	Standard: IP66/67, type 4X enclosure Option: IP69

Measured Variables

Volume flow, temperature, conductivity, mass flow, corrected volume flow, corrected conductivity

Wetted Materials

Liner: PFA

Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum

Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve

Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)

Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum

Device Features

Sensor Features

Flexible installation concept - numerous hygienic process connections
Energy-saving flow measurement - no pressure loss due to cross section constriction
Maintenance-free - no moving parts
Integrated temperature measurement
Sensor housing made of stainless steel (3-A, EHEDG)
Wetted materials CIP, SIP cleanable

Transmitter Features

Space-saving transmitter - full functionality on the smallest footprint
Time-saving local operation without additional software and hardware - integrated web server
Integrated verification - Heartbeat Technology
Robust, ultra-compact transmitter housing
High degree of protection: IP69
Local display available

Approvals and Certifications

Hazardous Area: ATEX, IECEx, cCSAus, INMETRO, EAC
Product Safety: CE, C-tick
Metrological: Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Marine: LR approval, DNV approval, ABS approval, BV approval
Pressure: PED, CRN
Material: 3.1 material
Hygienic: EHEDG, 3-A, liner and seals acc. to FDA, cGMP
