Name: TB820D Turbidity Detector with 0-500 NTU and 0-700 FNU Measuring Range and 20 m Cable Length for Water Quality Analysis
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: TB820D
Price: 5,000.00 USD
Availability: InStock

Домой > продукты > датчик воды качественный >

TB820D Turbidity Detector with 0-500 NTU and 0-700 FNU Measuring Range and 20 m Cable Length for Water Quality Analysis

0-500 NTU Turbidity Detector

0-700 FNU Turbidity Analyzer

20 m Cable Length Water Quality Sensor

Фирменное наименование:

Yokogawa

Номер модели:

TB820D

Свяжитесь с нами

Запросите цитату

TB820D Turbidity Detector with 0-500 NTU and 0-700 FNU Measuring Range and 20 m Cable Length for Water Quality Analysis

Подробная информация о продукции

метод измерения:

Метод прямоугольного рассеянного света

Температура:

От 0 до 50 ° C.

Скорость потока:

От 0,05 до 20 л/мин

Давление:

500 кПа макс

Источник питания:

От 100 до 240 В постоянного тока, 50/60 Гц

Цифровая связь:

Modbus TCP/IP, Modbus RTU

Выделить:

0-500 NTU Turbidity Detector

0-700 FNU Turbidity Analyzer

20 m Cable Length Water Quality Sensor

Условия оплаты и доставки

Количество мин заказа

1 шт

Упаковывая детали

Каждый блок имеет отдельную коробку, и все коробки упакованы в стандартные пакеты или доступны клиен

Время доставки

5-8 рабочих дней

Условия оплаты

Moneygram, Western Union, T/T, D/P, D/A, L/C.

Поставка способности

1000 штук/штуки в неделю

СОБЩЕННЫЕ ПРОДУКТЫ

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Лучшая цена

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Лучшая цена

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Лучшая цена

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Лучшая цена

Свяжитесь с нами

86--17719566736

Свяжитесь сейчас

Описание продукта

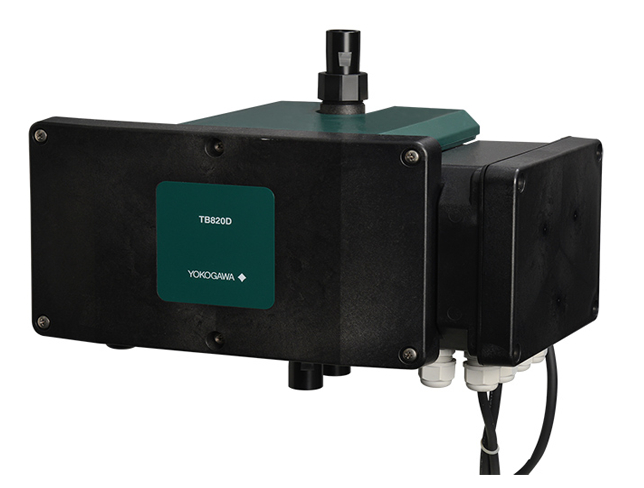

Right Angle Scattered Light Turbidity Detector TB820D

Providing reliable turbidity measurements in Water Treatment Plants since 1959

No.1 Process analyzer supplier to Japanese market*

"Reduce maintenance"
"Digital solution for water quality"

Many of our customers face these challenges - Yokogawa Turbidity Analyzers resolve them.

Since their sales began in 1959, Yokogawa's turbidity analyzers have been continuously developed and improved using various measurement principles suited for multiple applications. With its many achievements, Yokogawa has earned its customers' confidence.

The TB820D is part of the SENCOM4.0 platform family and can connect to FLXA402T. Thanks to a smart unit equipped detector, TB820D gives you more insight into the ordinary operation.

The TB820D turbidity analyzer using the right-angle light scattering method provides highly reliable measurements and uses LED as a light source.

*Based on a Yokogawa survey in 2019

News & Topics

TB820D Turbidity Meter has been awarded the Bronze Award in the Control Engineering 2025 Product of the Year competition. This recognition celebrates our ongoing efforts to deliver precise, reliable, and user-friendly solutions for process industries.

Features

Easy to clean cell structure, Automatic wash system, Long life time light source

High reliable measurement with excellent linearity and repeatability
Measure wide turbidity range (0-0.2 to 0-700 FNU (Light source 860 nm), 0-0.2 to 0-500 NTU (Light source 660 nm))
Longer life time light source by LED
Flat window cell structure is designed for small dead volume to prevent dirty retention
Diagnostics functions recommend you the appropriate maintenance time
Remote wash and calibration functions are available
Ultrasonic cleaning is available
Automatic 2 or 3 range switching is available
Can access all maintenance parts from the front panel
Max 20 m cable length is available between TB820D and FLXA402T thanks to digital technology

Application

Turbidity of tap water, sewage, river water and water used in general processes.

Water Purification Treatment

Sedimentation
Flocculation
Settling Basins
Clean water reservoir
Distributing pump
Distribution tank & Piping

Wastewater Treatment

Discharge/Reuse

Turbidity Typical System configuration

Specifications

Measuring method	Right angle scattered light method
Measuring Range (Turbidity standard: Formazin)	0-0.2 to 0-500 NTU (Light source 660 nm/Compliant standard: EPA approved Yokogawa Method 820)
Measuring Range (Turbidity standard: Formazin)	0-0.2 to 0-700 FNU (Light source 860 nm/Compliant standard: ISO7027)
Sample Conditions	Temperature: 0 to 50°C
	Flow Rate: 0.05 to 20 L/min
	Pressure: 500 kPa max
Power Supply	100 to 240 V DC, 50/60 Hz
Digital Communication	Modbus TCP/IP, Modbus RTU
Installation	Indoor (Outdoor use requires protection against rain. Direct sunlight must be avoided.)

Performance

Linearity	0-40 NTU : ±2% of reading or ±0.01 NTU whichever is greater over 40NTU to 100NTU: ±5% of reading over 100NTU: ±10% of reading
Repeatability	0-100 NTU range: ±1% of reading or ±0.002 TU whichever is greater over 100 NTU : ±2% of reading when Check tool is used
