DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

RS-232C Digital Output Liquid Density Analyzer

High Sensitivity Density Meter

Excellent Stability Vibration Type Density Analyzer

Фирменное наименование:

Yokogawa

Номер модели:

DM8

Свяжитесь с нами
Запросите цитату
Подробная информация о продукции
Диапазон измерений:
Плотность: от 0,5 до 2,0 г/см3
Измерение температуры жидкости:
-10 до 100 ℃
Измерение давления жидкости:
2 МПа g или меньше
withstandable давление:
4,9 МПа г
Выходной сигнал:
От 0,05 до 0,5 г/см3 устанавливается
Выделить:

RS-232C Digital Output Liquid Density Analyzer

,

High Sensitivity Density Meter

,

Excellent Stability Vibration Type Density Analyzer

Условия оплаты и доставки
Количество мин заказа
1 шт
Упаковывая детали
Каждый блок имеет отдельную коробку, и все коробки упакованы в стандартные пакеты или доступны клиен
Время доставки
5-8 рабочих дней
Условия оплаты
Moneygram, Western Union, T/T, D/P, D/A, L/C.
Поставка способности
1000 штук/штуки в неделю
Описание продукта

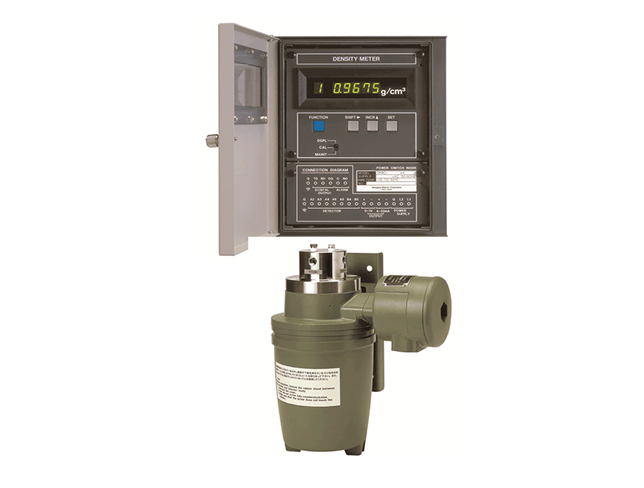

Liquid Density Analyzer DM8C, VD6

Since 1967, Yokogawa's VD6 vibration-type liquid density analyzer has set the standard for online density measurement in process automation. As density is a fundamental physical quantity critical to industrial processes, the VD6 has earned widespread recognition for its exceptional stability and high sensitivity.

The advanced DM8 vibration-type liquid density analyzer builds upon this legacy, incorporating modern computer technology and multiple sensor techniques. Its microprocessor-based converter directly transforms sensor frequency signals into precise density readings, featuring:

Key Features
  • High sensitivity and stability for reliable measurements
  • One-touch calibration using standard solution
  • Field-configurable measuring range
  • Failure alarm display and output
  • Outdoor-rated converter installation

The DM8 analyzer measures liquid density from 0 to 2.0 g/cm³ with outstanding precision, unaffected by flow rate or viscosity. Available configurations include general-purpose, sanitary, and explosion-proof sensors.

Technical Specifications
Measurement Object Liquid density
Measurement Principle Vibration density measurement
Measurement Range 0.5 to 2.0 g/cm³
Operating Conditions Liquid temperature: -10 to 100℃
Liquid pressure: ≤2 MPa G
Withstandable pressure: 4.9 MPa G
Output Signals Analog: 4-20 mA DC (≤550Ω) or 0-1V DC (≥250kΩ)
Digital: RS-232C
Performance Linearity: ±0.5% of span (≤0.2 g/cm³)
Repeatability: 5*10⁻⁴ g/cm³ (digital), 1% of span (analog)
Physical Specifications Converter weight: 7.5 kg
Detector weight: 12.0 kg
Enclosure: Dust and rain proof
Power Requirements 90-132V AC or 180-264V AC, 50/60Hz
