Name: KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSINS010C
Price: 478.00 USD
Availability: InStock

Домой > продукты > Датчик ускорителя >

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Laser Inertial Navigation System 0.5nmile/h accuracy

KSINS010C Inertial Navigation System with warranty

Accelerometer Sensor high-precision navigation

Место происхождения:

Китай

Фирменное наименование:

KACISE

Сертификация:

Номер модели:

KSINS010C

Свяжитесь с нами

Запросите цитату

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Подробная информация о продукции

Точность позиции:

0,5nmile/h

Точность Pitch & Roll:

< 0,003°

Точность заголовка:

<0>

Точность скорости:

<0,5 м/с

Время инициализации:

<5min>

Выделить:

Laser Inertial Navigation System 0.5nmile/h accuracy

KSINS010C Inertial Navigation System with warranty

Accelerometer Sensor high-precision navigation

Условия оплаты и доставки

Количество мин заказа

1 шт

Упаковывая детали

Каждый блок имеет отдельную коробку, и все коробки упакованы в стандартные пакеты или доступны клиен

Время доставки

5-8 рабочих дней

Поставка способности

1000 штук/штуки в неделю

СОБЩЕННЫЕ ПРОДУКТЫ

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

Лучшая цена

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Лучшая цена

Высокопроизводительный вибрационный мониторинг с детектором ускорителя Ф25.4 мм X30 мм

Лучшая цена

Кварцевые акселерометры для спутниковых блоков управления с Bias ≤5mg и Range =±20g

Лучшая цена

Свяжитесь с нами

86--17719566736

Свяжитесь сейчас

Описание продукта

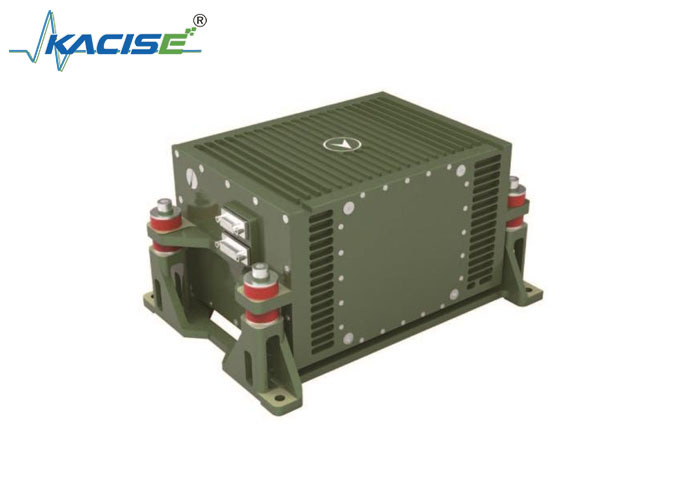

KSINS010C Laser Strapdown Inertial Navigation System

Key Specifications

Position Accuracy	0.5nmile/h
Pitch & Roll Accuracy	<0.003°
Heading Accuracy	<0.02°
Speed Accuracy	<0.5m/s
Initialization Time	<5min

Product Overview

The KSINS010C laser strapdown inertial navigation system is a compact, high-precision solution featuring small size, light weight, and exceptional reliability. Designed for autonomous navigation in complex environments, it's suitable for various applications in navigation, integrated navigation, guidance, and control systems. The system can integrate with satellite, radio, barometric altimeter, Doppler, and other data sources to achieve high-precision combined navigation.

Key Features

Compact 3.6kg laser strapdown design
Utilizes domestic high-precision spatial three-axis laser gyroscope and quartz flexible accelerometer
Capable of ground and air alignment on moving platforms
Supports self-alignment, on-the-fly alignment, or transfer alignment based on user requirements
Compatible with satellite, Doppler, altimeter, radio, star sensor, and other data sources for combined navigation
Features expandable interface options

Applications

Unmanned Aerial Vehicles (UAVs)
Fixed-wing UAVs
Rotary-wing UAVs

Technical Specifications

Performance Indicators
Position Accuracy	0.5nmile/h
Pitch & Roll Accuracy	<0.003°
Heading Accuracy	<0.02°
Speed Accuracy	<0.5m/s
Initialization Time	<5min
Mechanical/Electrical Interface
Steady state power consumption at normal temperature (W)	<27
Power supply (V)	18~32
Output	RS-422, RS-232, TTL, Ethernet
Size (mm)	185×139.5×110
Weight (Kg)	<3.9
