Name: Proline Promass I 300 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Пролин Промасс I 300
Price: 2,540.00 USD
Availability: InStock

Домой > продукты > Электромагнитный измеритель прокачки >

Proline Promass I 300 Coriolis flowmeter

Proline Promass I 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Фирменное наименование:

Endress+Hauser

Сертификация:

Номер модели:

Пролин Промасс I 300

Свяжитесь с нами

Запросите цитату

Proline Promass I 300 Coriolis flowmeter

Подробная информация о продукции

Максимум давление процесса:

PN 100, класс 600, 63K

Средний диапазон температуры:

от 50 до +150 °C (от 58 до +302 °F)

Датчик расквартировывая материал:

1.4301/1.4307 (304L), устойчивый к коррозии

Одобрения опасных зон:

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC

Безопасность продукта:

Маркировка CE, C, EAC

Выделить:

Proline Promass I 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Условия оплаты и доставки

Количество мин заказа

1 шт.

Упаковывая детали

Каждый блок имеет отдельную коробку, и все коробки упакованы в стандартные пакеты или доступны клиен

Время доставки

5-8 РАБОЧИХ ДНЕЙ

Условия оплаты

LC,D/A,D/P,T/T,Western Union,MoneyGram

Поставка способности

1000 штук/штуки в неделю

СОБЩЕННЫЕ ПРОДУКТЫ

Proline Promass S 300 Coriolis flowmeter

Лучшая цена

Proline Promass P 500 Coriolis flowmeter

Лучшая цена

Proline Promass Q 300 Coriolis flowmeter

Лучшая цена

Proline t-mass F 500 thermal mass flowmeter

Лучшая цена

Свяжитесь с нами

Свяжитесь сейчас

Описание продукта

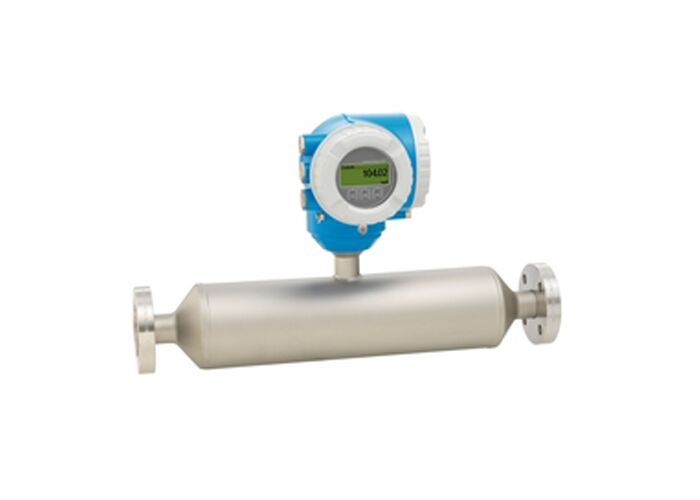

Proline Promass I 300 Coriolis Flowmeter

The Promass I 300 combines in-line viscosity measurement with mass flow, density, and temperature measurement in a straight single-tube design. Featuring a compact transmitter with flexible operation and system integration capabilities, this flowmeter offers access from one side, remote display, and enhanced connectivity options.

Key Benefits

Energy-saving full bore design minimizes pressure loss
Multivariable measurement reduces process measuring points
Space-saving installation with no inlet/outlet run requirements
Comprehensive process and diagnostic information access
Reduced complexity with freely configurable I/O functionality
Integrated verification through Heartbeat Technology

Technical Specifications

Measuring Principle	Coriolis
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity
Nominal Diameter Range	DN 8 to 80 (⅜ to 3")
Measuring Range	0 to 180,000 kg/h (0 to 6,600 lb/min)
Medium Temperature	-50 to +150 °C (-58 to +302 °F)
Max Process Pressure	PN 100, Class 600, 63K

Measurement Accuracy

Mass Flow (Liquid)	±0.10%
Volume Flow (Liquid)	±0.10%
Mass Flow (Gas)	±0.50%
Density (Liquid)	±0.0005 g/cm³

Wetted Materials

Measuring Tube	Titanium grade 9
Connection	Titanium grade 2

Device Features

Sensor Features

Straight, easy-to-clean single-tube system
TMB technology for enhanced performance
Measuring tube made of Titanium
Energy-saving full-bore design
Multivariable measurement capability
Space-saving installation design

Transmitter Features

Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available
Numerous freely combinable I/Os and fieldbuses
Freely configurable I/O functionality
Integrated verification via Heartbeat Technology

Technical Details

Environmental Specifications

Ambient Temperature	Standard: -40 to +60 °C (-40 to +140 °F) Option: -50 to +60 °C (-58 to +140 °F)
Degree of Protection	IP66/67, type 4X enclosure IP69

Housing Materials

Sensor Housing	1.4301/1.4307 (304L), corrosion resistant
Transmitter Housing	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygienic design

Inputs & Outputs

Outputs	3 outputs: 4-20 mA HART, 4-20 mA, Pulse/frequency/switch output, Relay output
Inputs	Status input, 4-20 mA input
Digital Communication	HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP, PROFINET, Ethernet/IP, OPC-UA
Power Supply	DC 24 V, AC 100-230 V, AC 100-230 V / DC 24 V (non-hazardous area)

Certifications & Approvals

Hazardous Area Approvals

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC

Product Safety

CE, C-tick, EAC marking

Functional Safety

IEC 61508 compliant, applicable in safety-relevant applications per IEC 61511

Metrological Approvals

Calibration performed on accredited facilities (ISO/IEC 17025), Heartbeat Technology complies with ISO 9001:2015 requirements

Pressure Approvals

PED, CRN

Material Certificates

3.1 material certification

Hygienic Approvals

3-A, EHEDG, cGMP
