Name: Deltabar PMD75B - differential pressure transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Дельтабар PMD75B
Price: 152.00 USD
Availability: InStock

Домой > продукты > Прецизионный датчик давления >

Deltabar PMD75B - differential pressure transmitter

Deltabar PMD75B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD75B

Место происхождения:

Швейцария

Фирменное наименование:

Endress+Hauser

Сертификация:

Номер модели:

Дельтабар PMD75B

Свяжитесь с нами

Запросите цитату

Deltabar PMD75B - differential pressure transmitter

Подробная информация о продукции

Точность:

:до 0,075 %Платина:до 0,055 %

Диапазон измерения:

10 мбар...40 бар (0,15 фунтов на квадратный дюйм...600 фунтов на квадратный дюйм)

Температура процесса:

-40 ° C ...+110 ° C (-40 ° F ...+230 ° F)

Средний диапазон температуры:

-40°С...+110°С(-40°Ф...+230°Ф)

Диапазон измерения давления:

10 мбар.... 40 бар (0,15 фунтов на квадратный дюйм... 600 фунтов на квадратный дюйм)

Основные намоченные части:

316L, сплав C

Выделить:

Deltabar PMD75B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD75B

Условия оплаты и доставки

Количество мин заказа

1 шт.

Упаковывая детали

Каждый блок имеет отдельную коробку, и все коробки упакованы в стандартные пакеты или доступны клиен

Время доставки

5-8 РАБОЧИХ ДНЕЙ

Условия оплаты

LC,D/A,D/P,T/T,Western Union,MoneyGram

Поставка способности

1000 штук/штуки в неделю

СОБЩЕННЫЕ ПРОДУКТЫ

Deltabar PMD55B - differential pressure transmitter

Лучшая цена

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

Лучшая цена

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Лучшая цена

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Лучшая цена

Свяжитесь с нами

Свяжитесь сейчас

Описание продукта

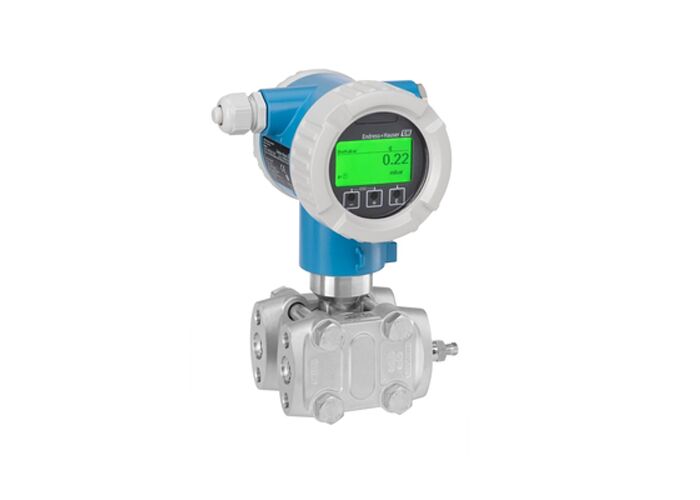

Deltabar PMD75B Differential Pressure Transmitter

The Deltabar PMD75B represents the latest generation of differential pressure transmitters, offering robust construction and intuitive operation both locally and remotely. This advanced instrument supports wireless control via mobile app using secure Bluetooth connectivity.

Key Specifications

Accuracy

Standard: up to 0.075%
Platinum: up to 0.055%

Measuring Range

10 mbar...40 bar (0.15 psi...600 psi)

Process Temperature

-40°C...110°C (-40°F...230°F)

Pressure Range

10 mbar...40 bar (0.15 psi...600 psi)

Static Pressure

Up to 250 bar (3750 psi)

Wetted Materials

316L, AlloyC

Field of Application

This transmitter is designed for differential pressure monitoring in liquids or gases. The intuitive software includes guided wizards for setup and proof testing, minimizing operational errors and supporting condition-based maintenance to significantly improve technical service efficiency.

Key Benefits

Wireless device control in process areas using SmartBlue App without process interruption
Enhanced safety by reducing on-site accidents and protecting equipment in hard-to-reach areas
Reduced systematic failures with error-free SIL commissioning and guided proof testing

Technical Specifications

Parameter	Specification
Measuring Principle	Differential Pressure
Long Term Stability	0.05% of URL/year 0.13% of URL/5 years 0.23% of URL/10 years
Ambient Temperature	-40°C...85°C (-40°F...185°F)
Process Pressure Limit	250 bar (3750 psi)
Process Connection	NPT 1/4-18, RC1/4
Communication	4...20 mA HART, PROFINET with Ethernet-APL, Bluetooth® wireless technology (optional)

Special Features

Bluetooth® operation and maintenance with SmartBlue App, RFID TAG for easy identification, and plug-and-play functionality for simplified integration.

Certifications & Approvals

ATEX, CSA, IECEx, JPN Ex, KC, INMETRO, NEPSI, UK Ex
Safety: SIL
Design: EN 10204-3.1, NACE MR0175, NACE MR0103, AD2000
Drinking Water: NSF, KTW

Application Limits

None - suitable for a wide range of industrial applications.
