| Characteristic | Parameter |
|---|
| Certifications | cULus/UL 508; File E37138, Industrial control CE; DOC A347 UKCA Reference standards: EN60947-5-1; EN60947-5-3; EN61000-6-2; EN61000-6-4; EN60204-1; EN62061; EN ISO 13849-1; EN ISO 13850 |

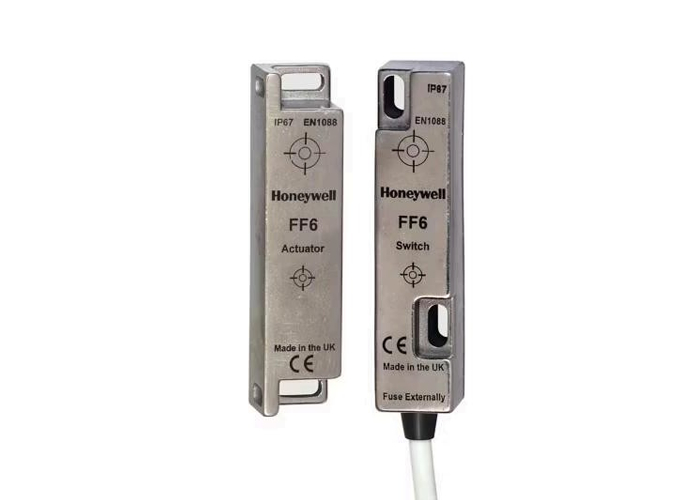

| Switch and actuator housing material | FF6: ABS plastic
FF6-SS: 316 stainless steel |
| Termination | Pre-wired, color-coded cable: 3 m (9.8 ft) or 6 m (19.7ft); Male M12 quick connect with 5 m (16.4 ft) female quick connect cable |
| Contacts (when actuator present) | 1NC, 1NC/1NO, 2NC, 2NC/1NO |
| Contact design | Magnetically actuated |
| Safety contact rating | ac style: 230 Vac/2 A
dc style: 24 Vdc/1 A |
| Safety contact sensing distance* | 10 mm (0.39 in) ON
28 mm (1.10 in) OFF |
| Auxiliary contact rating | 15 W/10 VA |
| Auxiliary contact sensing distance* | 11 mm (0.43 in) OFF
21 mm (0.83 in) ON |
| Internal fuse | ac: 2 A fast acting
dc: 1 A fast acting |
| External fuse (customer supplied) | ac: 1.6 A fast acting
dc: 0.8 A fast acting |
| Environmental sealing | IP67 for switch and actuator |
| Operating temperature | -25°C to 55°C (-13°F to 131°F) |
| Vibration | 10 g, 10 Hz to 50 Hz per IEC 60068-2-6 |
| Shock | 30 g, 11 ms per IEC 60068-2-27 |
* The sensing distance is measured from the front surface of the switch to the front surface of the actuator. When actuated, the targets on the surface of the switch and the surface of the actuator are designed to align.
| Catalog Listing | Description |
|---|
| ABS Plastic Housing |
| FF6-10-AC-03 | FF6 Series switch and actuator, 1NC safety contact for ac applications, 3 m (9.8 ft) pre-wired cable |
| FF6-10-AC-06 | FF6 Series switch and actuator, 1NC safety contact for ac applications, 6 m (19.7 ft) pre-wired cable |
| FF6-10-AC-QD05 | FF6 Series switch and actuator, 1NC safety contact for ac applications, M12 male 4-pin integral connector, 5 m (16.4 ft) cable with integral 4-pin female connector |
| FF6-10-DC-03 | FF6 Series switch and actuator, 1NC safety contact for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-10-DC-06 | FF6 Series switch and actuator, 1NC safety contact for dc applications, 6 m (19.7 ft) pre-wired cable |
| FF6-10-DC-QD05 | FF6 Series switch and actuator, 1NC safety contact for dc applications, M12 male 4-pin integral connector, 5 m (16.4 ft) cable with integral 4-pin female connector |
| FF6-11-AC-03 | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for ac applications, 3 m (9.8 ft) pre-wired cable |
| FF6-11-AC-06 | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for ac applications, 6 m (19.7 ft) pre-wired cable |
| FF6-11-AC-QD05 | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for ac applications, M12 male 4-pin integral connector, 5 m (16.4 ft) with integral 4-pin female connector |
| FF6-11-DC-03 | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-11-DC-06 | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for dc applications, 6 m (19.7 ft) pre-wired cable |
| FF6-11-DC-QD05 | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for dc applications, M12 male 4-pin integral connector, 5 m (16.4 ft) cable with integral 4-pin female connector |
| FF6-20-AC-03 | FF6 Series switch and actuator, 2NC safety contacts for ac applications, 3 m (9.8 ft) pre-wired cable |
| FF6-20-AC-06 | FF6 Series switch and actuator, 2NC safety contacts for ac applications, 6 m (19.7 ft) pre-wired cable |
| FF6-20-AC-QD05 | FF6 Series switch and actuator, 2NC safety contacts for ac applications, M12 male 4-pin integral connector, 5 m (16.4 ft) cable with integral 4-pin female connector |
| FF6-20-DC-03 | FF6 Series switch and actuator, 2NC safety contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-20-DC-06 | FF6 Series switch and actuator, 2NC safety contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-20-DC-QD05 | FF6 Series switch and actuator, 2NC safety contacts for dc applications, M12 male 4-pin integral connector, 5 m (16.4 ft) cable with integral 4-pin female connector |
| FF6-21-AC-06 | FF6 Series switch and actuator |
| FF6-21-AC-QD05 | FF6 Series switch and actuator, 2NC safety and 1NO auxiliary contacts for ac applications, M12 male 6-pin integral connector, 5 m (16.4 ft) cable with integral 6-pin female connector |
| FF6-21-DC-03 | FF6 Series switch and actuator, 2NC safety and 1NO auxiliary contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-21-DC-06 | FF6 Series switch and actuator, 2NC safety and 1NO auxiliary contacts for dc applications, 6 m (19.7 ft) pre-wired cable |
| FF6-21-DC-QD05 | FF6 Series switch and actuator, 2NC safety and 1NO auxiliary contacts for ac applications, M12 male 6-pin integral connector, 5 m (16.4 ft) cable with integral 6-pin female connector |
| Stainless Steel Housing |
| FF6-10-AC-03-SS | FF6 Series switch and actuator, 1NC safety contact for ac applications, 3 m (9.8 ft) pre-wired cable |
| FF6-10-DC-03-SS | FF6 Series switch and actuator, 1NC safety contact for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-11-DC-03-SS | FF6 Series switch and actuator, 1NC safety and 1NO auxiliary contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-20-DC-03-SS | FF6 Series switch and actuator, 2NC safety contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
| FF6-21-DC-03-SS | FF6 Series switch and actuator, 2NC safety and 1NO auxiliary contacts for dc applications, 3 m (9.8 ft) pre-wired cable |
