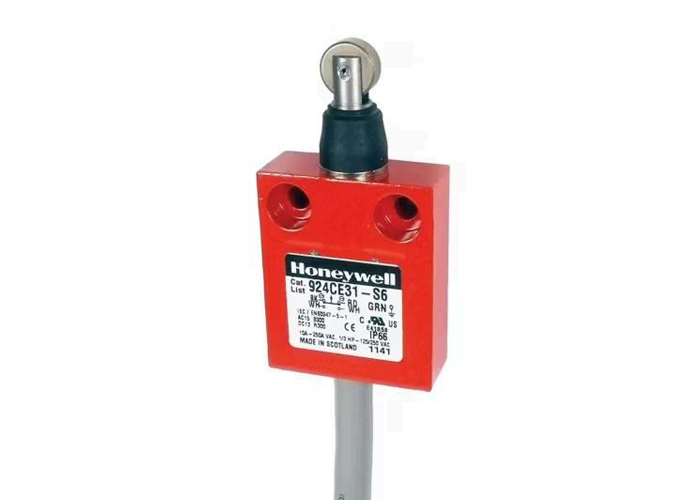

Name: Honeywell 924CE Series Miniature Safety Switch with IP66 Metal Housing and SIL3 Certification
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Серия 924CE
Price: 152.00 USD
Availability: InStock

Домой > продукты > Прецизионный датчик давления >

Honeywell 924CE Series Miniature Safety Switch with IP66 Metal Housing and SIL3 Certification

IP66 Miniature Safety Switch

SIL3 Electromechanical Safety Switch

Metal Housing Limit Switch

Фирменное наименование:

Honeywell

Номер модели:

Серия 924CE

Свяжитесь с нами

Запросите цитату

Honeywell 924CE Series Miniature Safety Switch with IP66 Metal Housing and SIL3 Certification

Подробная информация о продукции

Категория использования:

AC15, B300: DC13, R300

Расклассифицированное рабочее напряжение тока (Ue):

240 В переменного или постоянного тока

Номинальный рабочий ток:

1,5 А, 0,1 А

Максимальный номинал предохранителя:

10 a

Выделить:

IP66 Miniature Safety Switch

SIL3 Electromechanical Safety Switch

Metal Housing Limit Switch

Условия оплаты и доставки

Количество мин заказа

1 шт.

Упаковывая детали

Каждый блок имеет отдельную коробку, и все коробки упакованы в стандартные пакеты или доступны клиен

Время доставки

5-8 рабочих дней

Условия оплаты

LC,D/A,D/P,T/T,Western Union,MoneyGram

Поставка способности

1000 штук/штуки в неделю

СОБЩЕННЫЕ ПРОДУКТЫ

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Лучшая цена

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Лучшая цена

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Лучшая цена

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Лучшая цена

Свяжитесь с нами

Свяжитесь сейчас

Описание продукта

Honeywell 924CE Series Miniature Housing IEC945-5-1, EN60947-5-1

Honeywell's 924CE Series miniature electromechanical safety switches are designed with a rugged metal housing. This Series features positive opening normally closed contacts to EN/IEC 60947-5-1-3 specifications. Due to their small size and positive opening normally closed contact, the 924CE Series provides a safety solution for applications where the size of other products could be prohibitive on the machinery.

The 924CE Series offers a variety of configurations which include a wide range of actuators, circuits, and electrical terminations to solve many application issues. These miniature switches are environmentally sealed to IP66 for demanding environments on indoor or outdoor machinery. In addition, the 924CE Series has been evaluated for safety functions up to a safety integrity level (SIL) of SIL3 when evaluated to the requirements of IEC 61508-2:2010.

Features

Compact metal housing epoxy encapsulated with the common 25.4 mm [1.0 in] center-to-center mounting
Positive opening operation of normally closed contacts to EN/IEC 60947-5-1-3 specification
Designed and agency evaluated for safety functions up to a SIL3 level
Three different slow-action circuit options: 1NC/1NO BBM (break-before-make), 1NC/1NO MBB (make-before-break), and 1NC
Wide range of actuator heads and levers
Can be gang mounted for multiple-pole capability
Certified for global applications; cULus, CE, UKCA
Environmentally sealed to IP66
Standard temperature operating range of 0°C to 70°C [32°F to 158°F]
Optional low temp. operating range of -40°C to 70°C [-40°F to 158°F]

Potential Applications

Industrial

Machine tools (small doors and apertures)
Material handling
Packaging machinery
Trailer/truck restraint systems (dok-loks)

Transportation

Small construction machinery

Value to Customers

Miniature rugged 924CE switches with common 25.4 mm [1.0 in] mounting footprint
Switches easily gang mounted for multi-pole capability
Low temp. option of -40°C [-40°F]
Long life of up to 10 million mechanical operations
Several electrical connection options: pre-cabled with different lengths; ac or dc Micro connectors with 4-pin or 5-pin options

Differentiation

Miniature metal body size of 40 mm L * 16 mm W * 49 mm H requires less space on machinery
Positive opening normally closed contacts with an optional normally open contact
Designed and evaluated for safety functions up to a SIL3 level

Table 1. Specifications

Characteristic	Parameter
Description	miniature safety electromechanical switch
Certifications	CE, UKCA, cULus, SIRA, IEC/EN60947-5-1
Housing material	epoxy-coated die-cast zinc
Actuators	pin plunger (924CE1-) roller plunger parallel (924CE2-) roller plunger perpendicular (924CE3-) rotary (924CE16-) pin plunger with boot seal (924CE18-) adjustable plunger (924CE19-) roller plunger parallel, panel mount (924CE28-) roller plunger perpendicular, panel mount (924CE29-) roller plunger parallel with boot seal (924CE31-) roller plunger perpendicular with boot seal (924CE55-)
Termination (electrical connection)	3 core or 5 core SJTO cable, Integral dc Micro connector (4-pin or 5-pin), Integral ac Micro connector (5-pin)
Contact options	1NC/1NO BBM (break-before-make), 1NC/1NO MBB (make-before-break), 1NC (all normally closed contacts are positive opening)
Contact type	Slow action
Contact material	silver alloy
Utilization category	AC15, B300: DC13, R300
Rated operational voltage (Ue)	240 V ac or dc
Rated operational current	1.5 A, 0.1 A
Rated thermal current (Ith)	10 A
Rated insulation voltage (Ui)	250 V
Rated impulse withstand voltage (Uimp)	2500 V
Maximum fuse rating	10 A
Environmental sealing	IP66
Operating temperature	Standard: 0°C to 70°C [32°F to 158°F] Optional: -40°C to 70°C [-40°F to 158°F]
MCTF (Mechanical life)	>1,000,000 cycles
MCTF (Electrical life)	>25,000 cycles
SIL Capability	Up to SIL3 (HFT1), IEC61508-2:2010
Proof test interval	1 year

Table 2. Electrical Ratings EN/IEC 60947-5-1

ac	B300			AC15
ac	UE (Volts)	IE (Amps)	VA Rating	UE (Volts)	IE (Amps)	VA Rating
120	3	3600	360	125	0.22	28
240	1.5	3600	360	250	0.1	28

Part Numbers

Part Number	Description
924CE1-S20	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE1-S3	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE1-S6	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE1-S9	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE1-T25A	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE1-T3A	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE1-T6A	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE1-T9	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE1-T9A	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE1-Y3	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE1-Y9	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE16-S12	LIMIT SWITCH, COMPACT
924CE16-S3	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE16-S9	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE16-T3	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE16-Y3	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE16-Y9	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE18-S6	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE2-S15	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE2-S21	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE2-S3	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE2-S6	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE2-S9	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE2-S9A	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE2-T25	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE2-T6	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE2-Y3	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE2-Y9	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE3-Y3	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE3-Y6	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE3-Y9P	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE31-S6	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE31-Y20-X5	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE31-Y3L1	MINIATURE ENCLOSED SAFETY LIMIT SWITCH
924CE55-SAQ1	LIMIT SWITCH
924CE55-SQ	SWITCH
