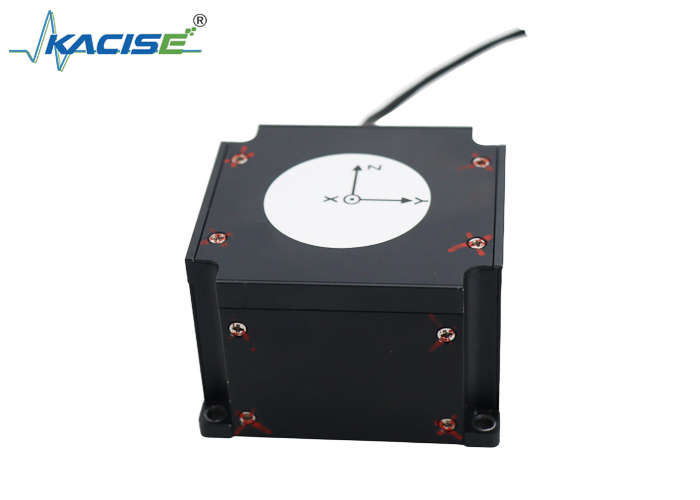

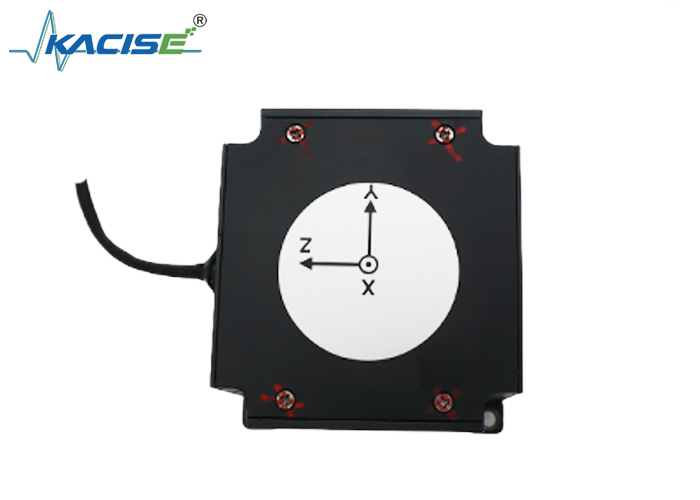

KSGYR312F-L 3-Axis Fiber Optic Gyroscope 71.5×68×45mm ≤0.1°/h Bias

This inertial angle rate sensor utilizes the optical Sagnac effect to measure rotational angular velocity along the sensitive axis. Its digital closed-loop detection circuit precisely extracts optical path differences caused by external angular speed, enabling real-time angular velocity signal detection through voltage signal modulation and feedback control.

The system consists of an optical angular velocity sensitive unit and signal detection components, providing triaxial angle increment data and internal temperature information.

• Precisely measures angular velocity of moving objects
• All-solid-state design with no rotating or friction parts
• Extended operational lifespan
• Instantaneous startup capability
• Simple, robust structure
• Simultaneous three-axis angular velocity measurement

• Photoelectric elevator systems
• Flight control platforms
• Strapdown inertial navigation
• Optical and photographic instruments
• Platform stabilizers
• Inertial measurement instruments
