Name: Dwyer Magnehelica Mechanical Micro Differential Pressure Gauge With 0.5kg Load Capacity
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 2000-60 года
Price: 152.00 USD
Availability: InStock

Домой > продукты > Прецизионный датчик давления >

Dwyer Magnehelica Mechanical Micro Differential Pressure Gauge With 0.5kg Load Capacity

Dwyer Mechanical Micro Differential Pressure Gauge

Micro Differential Pressure Gauge

Фирменное наименование:

Dwyer

Сертификация:

Номер модели:

2000-60 года

Свяжитесь с нами

Запросите цитату

Dwyer Magnehelica Mechanical Micro Differential Pressure Gauge With 0.5kg Load Capacity

Подробная информация о продукции

Warranty:

1 Year

Model Number:

2000 Series

Type:

Differential

Connection:

1/4NPT

Weight:

0.5kg

Customized Support:

OEM, ODM

Выделить:

Dwyer Mechanical Micro Differential Pressure Gauge

Micro Differential Pressure Gauge

Условия оплаты и доставки

Количество мин заказа

1 шт.

Упаковывая детали

Каждый блок имеет индивидуальную коробку и все коробки упакованы в стандартные упаковки или по запро

Время доставки

5-8 рабочих дней

Условия оплаты

Аккредитив, Документы против акцепта, Документы против платежа, Банковский перевод, Western Union, M

Поставка способности

1000 штук/штук в неделю

СОБЩЕННЫЕ ПРОДУКТЫ

ДИФФЕРЕНЦИАЛЬНЫЙ МАНОМЕТР KMC2000MICRO

Лучшая цена

Датчик перепада давления Dwyer Magnesense MS-111

Лучшая цена

KMC-Y250BF Датомер 0-60mpa для газовой воды, жидкой среды и масла

Лучшая цена

Комбинированный манометр 3000MR 3000MRS с установленными нижним и верхним пределами

Лучшая цена

Свяжитесь с нами

86--17719566736

Свяжитесь сейчас

Описание продукта

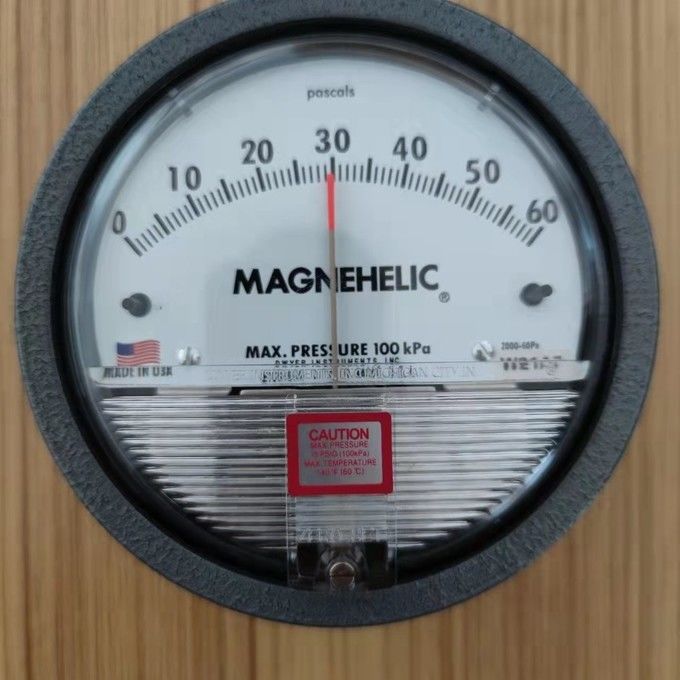

Dwyer Magnehelica Mechanical Micro Differential Pressure Gauge With 0.5kg Load Capacity

Attribute	Value
Warranty	1 Year
Model Number	2000 Series
Type	Differential
Connection	1/4NPT
Weight	0.5kg
Customized Support	OEM, ODM

Product Introduction

Dwyer Magnehelica mechanical differential pressure gauge delivers high-precision measurement within ±2% of full scale, featuring 81 selectable ranges to precisely meet diverse application needs. Utilizing simple, non-wearing Magnehelica moving components, this gauge rapidly indicates low pressures of air or non-corrosive gases—including positive pressure, negative pressure (vacuum), or differential pressure.

Engineered to resist shock, vibration, and overpressure, it eliminates issues like manometer liquid evaporation, freezing, or poisoning, while offering a cost-effective solution. Widely applied in measuring fan pressure, blower resistance, filter pressure drop, wind speed, furnace draft, orifice plate pressure loss, foaming system liquid level, fluid amplifier pressure, and hydraulic system pressure. It also detects gas-to-air ratio controls, automatic valves, and monitors blood/respiratory pressure in medical care equipment.

Key Features

High Accuracy: ±2%~4% of full scale at 21°C (70°F), ensuring reliable measurements.
Versatile Ranges: 81 range options with metric/imperial units for flexible applications.
Non-Wearing Design: Magnetic transmission eliminates friction, wear, and hysteresis.
Robust Construction: Shock, vibration, and overpressure resistant; no liquid-related failures.
Easy Installation: Surface or flush mounting; compatible with Model A-610 pipe mount.
Calibration Flexibility: Adjustable for horizontal/vertical use (re-zero for optimal accuracy).
