Product Introduction

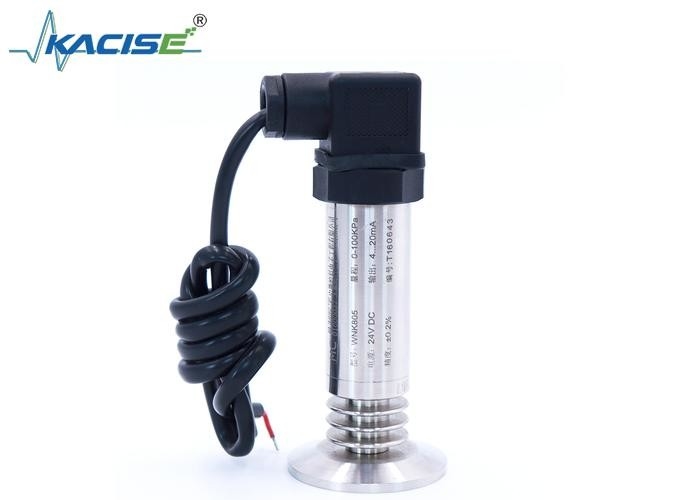

The KAW101 High-Precision Sanitary Pressure Transmitter is widely applicable in the food, beverage, biotechnology, and pharmaceutical industries. It plays a crucial role in food, dairy, beverage, and pharmaceutical processing, liquid level control, and sanitary pipeline systems. With its fully sealed design, it can endure high-pressure washdowns during CIP and SIP processes.

It can accurately measure the pressure of gases, liquids, and steam, covering gauge pressure, absolute pressure, negative pressure, and sealing pressure. The pressure range includes options like 0-0.2 ...100kPa, 0-0.2 ...1000kpa, and up to 60 MPa. The typical output signal is 4...20mA, and other signals such as 0.5...4.5VDC are also available.

Features

• High Precision: Accuracy levels of 0.25%, 0.5%, and 1.0%FS provide excellent measurement precision for critical applications.
• Good Stability: With a stability of ±0.25% FS/year, it ensures consistent performance over time.
• Large Overload Capacity: Can withstand a maximum overload of 200% of the sensor range, enhancing its durability.
• Stainless Steel Housing: Housing materials of 304SS or 316L offer good corrosion resistance.
• Diverse Mechanical Connections: Mechanical connections such as clamp, flush, and flange types are available for different installation needs.
• Intelligent Temperature Compensation: The intelligent digital circuit provides accurate temperature characteristic compensation.
• Optional Tantalum Sensor: Tantalum sensor contact can be selected for measuring pressure in corrosive media environments.
• Wide Temperature Adaptability: Suitable for ambient and process temperatures ranging from -40℃ to 85℃.
• Multiple Power Supply Modes: Power supply varies according to explosion protection requirements, with non-explosion: 10.5~45V DC and EEX ia:10.5~30 V DC.
• Optional LED Display: LED display can be optionally added for convenient pressure indication.
