Product Introduction

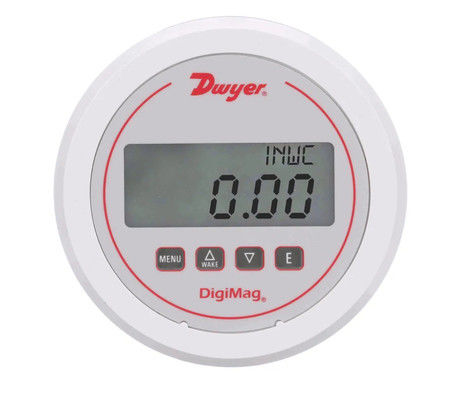

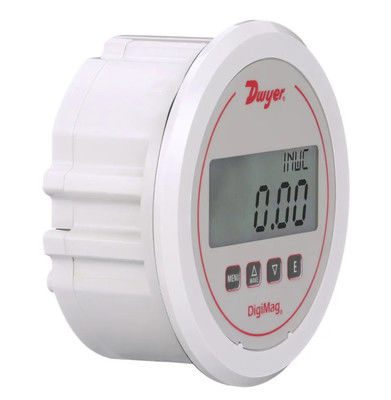

The Dwyer DM-1000 DigiMag® Digital Differential Pressure Gauge is a versatile, precision instrument designed to monitor pressure for air and compatible gases. Building on the legacy of the renowned Magnehelic® analog gauge, this digital model offers enhanced functionality with factory-calibrated ranges and a 4-digit LCD display that shows readings in both standard and metric units—eliminating the need for manual conversions. With simplified four-button operation, including digital push-button zero and span, it streamlines setup and calibration. The gauge can be field-programmed to measure pressure, air velocity, or flow (depending on the model), making it ideal for diverse industrial applications. A standout feature for filter systems allows users to set a threshold, triggering a blinking display when a filter needs maintenance, ensuring proactive upkeep.

Product Features

Accuracy & Range:

Full-scale accuracy of ±1% for ranges ≥2 in w.c., ±2% for ranges as low as 0.25 in w.c.

Pressure range: 0–0.25'' w.c.

Display & Units:

4-digit LCD with 0.60H x 0.33W digits, updating every 1 second to 10 minutes (user-selectable).

Selectable units: in w.c., psi, kPa, Pa, mm w.c., mBar, in Hg, mm Hg, FS (0–100%).

Power & Versatility:

Compatible with 9–24 VDC line power or a 9V battery (included, replaceable).

Battery acts as a backup when using line power, ensuring uninterrupted operation.

Durability & Construction:

Housing: Glass-filled plastic with NEMA 4X (IP66) rating for dust and water protection.

Wetted materials: Consult factory for specifics.

Process connections: 1/8'' (3 mm) ID tubing.

Performance & Stability:

Temperature limits: 0–140°F (-18–60°C); compensated from 32–122°F (0–50°C).

Long-term stability: ±1% FS per year; thermal effect: ±0.05% FS/°F (typ.).

Maintenance Alert:

Customizable set point for filter applications; display blinks when a dirty filter requires attention.

Additional Specs:

Weight: 1.18 lb (535 g); size: 5'' (127 mm) OD front face.

Approvals: CE certified; made in the USA.
