Industrial Grade WSS-411W Bimetal Thermometer with Custom Stem Length

Industrial Grade WSS-411W Bimetal Thermometer with Custom Stem Length

Industrial Grade Bimetal Thermometer

Custom Stem Length Bimetal Thermometer

WSS-411W Bimetal Thermometer

Место происхождения:

Китай

Фирменное наименование:

KACISE

Номер модели:

WSS-411W

Свяжитесь с нами
Запросите цитату
Подробная информация о продукции
Диапазон измерений:
-50°C до +500°C (настраиваемый)
Класс точности:
±1,0%, ±1,5% или ±2,0% (по EN 13190 или ASME B40.3)
Диаметр диска:
63 мм / 100 мм / 150 мм
Длина стержня:
от 50 до 500 мм (доступны индивидуальные длины)
Диаметр стержня:
Ø6 мм / Ø8 мм / Ø10 мм
Материал:
Нержавеющая сталь 304 или 316
Выделить:

Industrial Grade Bimetal Thermometer

,

Custom Stem Length Bimetal Thermometer

,

WSS-411W Bimetal Thermometer

Условия оплаты и доставки
Количество мин заказа
1 шт.
Упаковывая детали
Каждый блок имеет индивидуальную коробку и все коробки упакованы в стандартные упаковки или по запро
Время доставки
5-8 рабочих дней
Условия оплаты
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Поставка способности
1000 штук/штук в неделю
Описание продукта

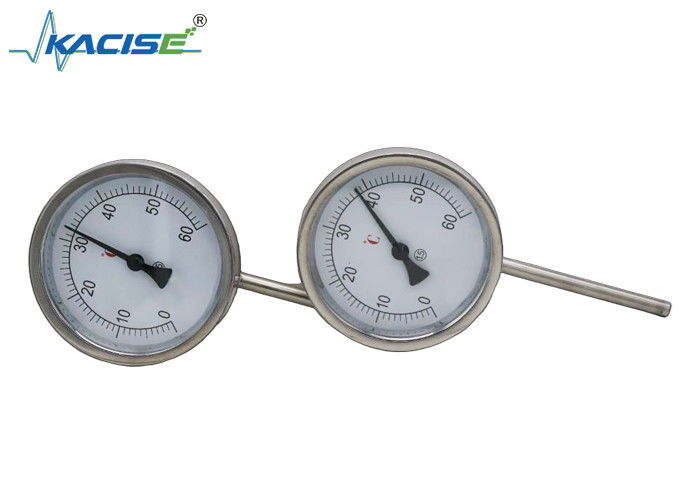

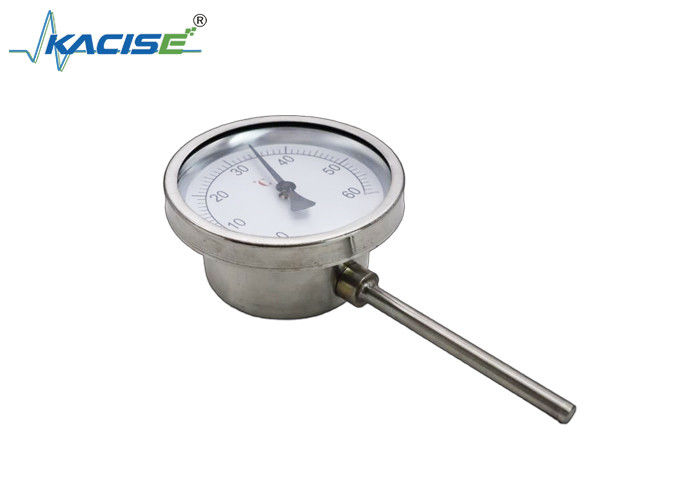

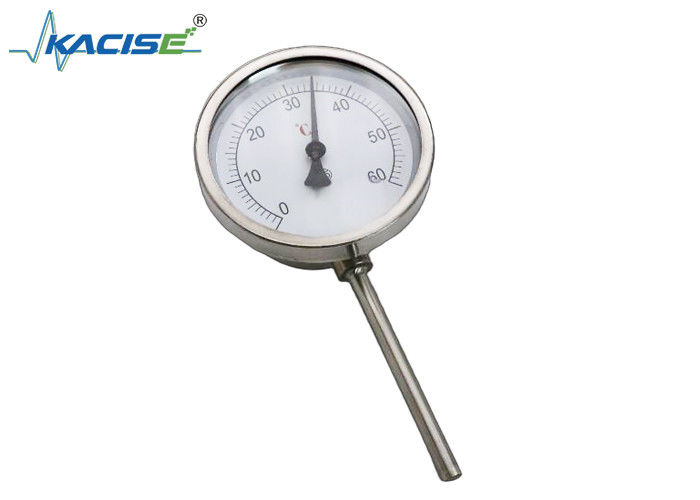

WSS-411W Bimetal Thermometer

Introduction

The Bimetal Thermometer is a mechanical temperature measuring instrument that operates based on the thermal expansion of two bonded metals with different coefficients of expansion. It is widely used in various industries such as petroleum, chemical, food, pharmaceutical, and HVAC applications for local temperature indication.

Features

  • No power supply required (mechanical type)
  • Durable and reliable for harsh environments
  • Fast response time and clear dial reading
  • Available in various dial sizes, ranges, stem lengths, and connection types
  • Optional waterproof and anti-corrosion design
  • Stainless steel construction (304/316) optional for food and sanitary use

Technical Parameters

Measuring Range -50°C to +500°C (customizable)
Accuracy Class ±1.0%, ±1.5%, or ±2.0% (per EN 13190 or ASME B40.3)
Dial Diameter 63 mm / 100 mm / 150 mm
Stem Length 50 mm to 500 mm (custom lengths available)
Stem Diameter Ø6 mm / Ø8 mm / Ø10 mm
Material Stainless steel 304 or 316
Mounting Type Back, bottom, or adjustable angle connection
Connection Threaded (1/2” NPT, G1/2", M20x1.5, etc.)
Window Material Glass or polycarbonate
Protection Grade IP55 / IP65 / IP67 (optional)
