| Место происхождения: | Китай кси'ан |
| Фирменное наименование: | KCF SERIES |
| Сертификация: | CE |
| Номер модели: | ККФ 406 |
| Количество мин заказа: | 1 |
|---|---|
| Цена: | 70 |
| Упаковывая детали: | запросы коробки или клиентов доступные |
| Время доставки: | 7 |
| Условия оплаты: | T / T, Western Union |
| Поставка способности: | 1~1000 |
| Материал: | Нержавеющая сталь | Ранг предохранения: | IP 67 |
|---|---|---|---|
| Измеряя ряд: | 170мм~2м | выходной: | 4-20mA |
| Material | 304 stainless steel |
| Fitting | bulge fitting, thread fitting, SAE fitting |
| Length range | 170mm~2000mmm |
| Installation | bayonet, standard 5 holes or standard 6 holes, can be customzied |
| Gasket | FPM gasket, NBR gasket |
| Rated Power | 125mW |
| Rated Current for alarm switch | 500mA |
| Wire | PVC material (PA corrugated pipe aacover is optional) |
| Connector | Brand Delphi , Tyco, others is available according to customers’ requirement |
| Output signal | Resistance control signal 0-190Ω, 240-33Ω, or customize as required |
| Precision Range | 10-40mm |
| Operating Temperature | -40℃~+85 ℃ |
| Protection Grade | IP67 |
3. Dimension
4. Application

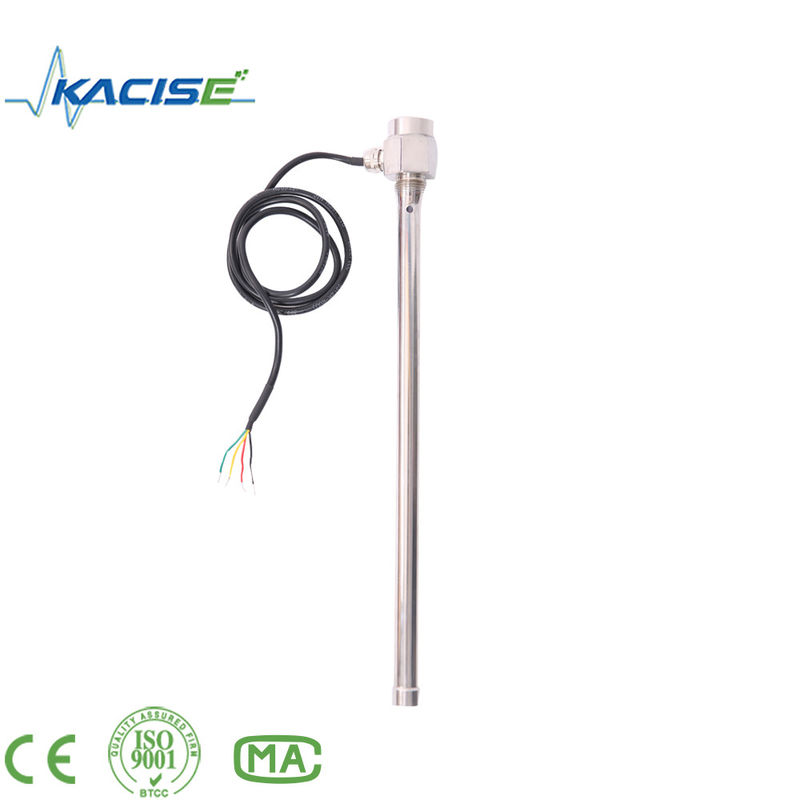

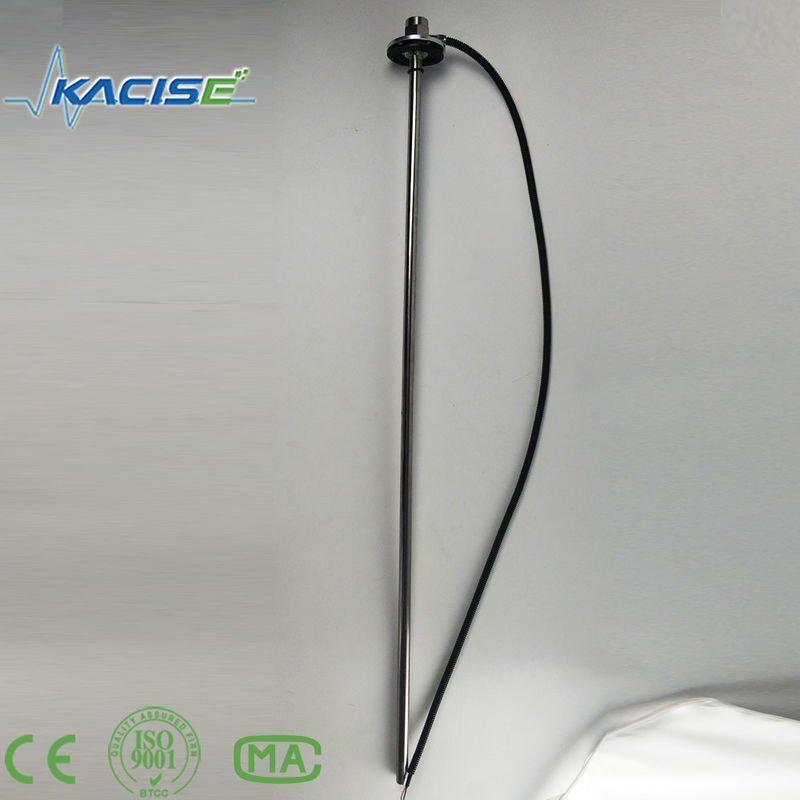

1. mainly used in liquid level detection and oil absorbing function for oil tank
5. Package
******************************************************************************************************************************************
Please send us emali for more information, we will reply you in 12 hours.
We will provide 12 months of warranty, and lifetime maintenance for products.
Fully tested before delivery.
We supply high quality fuel level sensor, and provide high level services.
We believe once cooperation can keep you as our friend. We look forward your inquiries.
